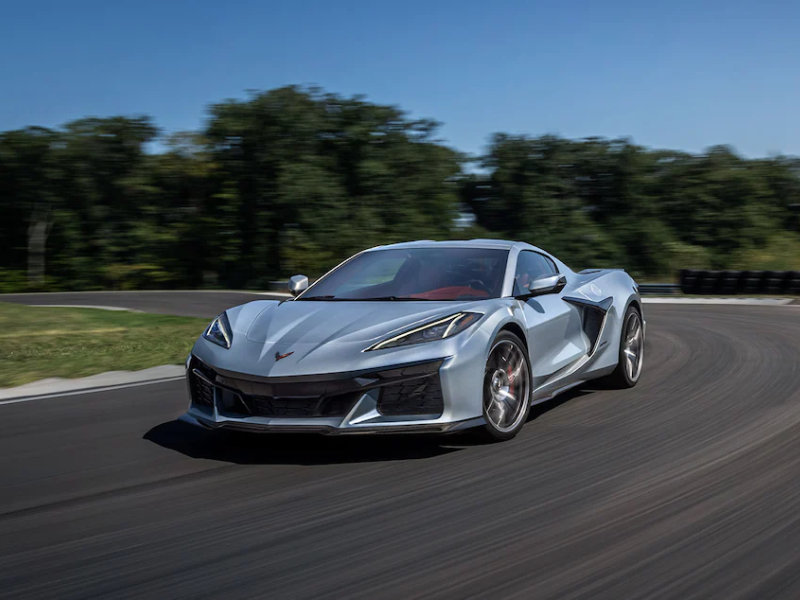

2023 Corvette Z06 Specifications
Body Specs
| Model | Chevrolet Corvette Z06 |
|
Body styles / driveline:
|
Two Door Coupe, Hardtop Convertible / Mid Engine
|
| Manufacturing Plant: | Bowling Green, KY |
| Wheelbase: | 107.2 inches (2,722 mm) |
| Length: |
184.6 inches (4,688 mm)
185.9 inches (4,722 mm) with carbon fiber ground effects |
| Width: | 79.7 inches (2,025 mm) |
| Height: | 48.6 inches (1,235 mm) |
| Track: | Front: 66.3 inches (1,685 mm) Rear: 66.1 inches (1,678 mm) |
| Dry Weight: |
3,434 lbs (1,561 kg) – Coupe – Z07 equipped with carbon fiber wheels
|
| Weight Distribution: | Front: N/A Rear: N/A |
| Seating Capacity: | Two |
| Headroom: | 37.9 inches (962 mm) |
| Leg Room: | 42.8 inches (1,087 mm) |
| Shoulder Room: | 54.4 inches (1,382 mm) |
| Hip Room: | 52.0 inches (1,321 mm) |
| Cargo Volume: | 12.6 cu. ft. (357 cu. L) |
| Fuel Capacity: | 18.5 gal (70 L) |
|
Transmission: M1L 8-speed dual clutch (DCT)
|
1st Gear 2.91:1 2nd Gear 1.76:1 3rd Gear 1.22:1 4th Gear 0.88:1 5th Gear 0.65:1 6th Gear 0.51:1 7th Gear 0.40:1 8th Gear 0.33:1 Reverse Gear 2.63:1 Ring and Pinion Ratio 5.56:1 |
|
Standard Fuel Tank Capacity:
|
18.5 gal (70 L) |
| Wheels: |
Front: 20 inch x 10-inch (w/5 x 120mm bolt pattern)
Rear: 21-inch x 13-inch (w/5 x 120mm bolt pattern) |
| Tires: | Michelin Sport Cup 2 R ZP (with Z07 option) Front: 275/30ZR20 Rear: 345/25ZR21 |
| EPA Fuel Economy: | N/A |
Engine Specs
| Z06 Designation: | LT6 |
| Type: | 90° V8, DOHC |
| Displacement: | 374.92 cu. in. (6.2 L) |
| Bore / Stroke: |
4.104 inches x 3.150 inches (104.25 mm x 80 mm)
|
| Induction System: | Normally Aspirated |
| Horsepower: | 670 hp @ 8,600 RPM – Tested per SAE J1349 |
| Torque: |
460 lbs. – ft. @ 6,300 RPM – Tested per SAE J1349
|
| Fuel Delivery: |
Exhaust side direct injection. Max pressure: 5,076 psi
|
| Throttle Body: | Twin 87mm single bore (electronic) |
| Redline: | 8,600 RPM |
| Compression Ratio: | 12.5:1 |
| ECU: | GM E68 (32-bit processing) |
| Block Material: |
A319-T7 sand-cast aluminum with pressed-in iron cylinder liners and four-bolt main bearing caps
|
|
Cylinder Head Material:
|
A356 T6 cast aluminum |
| Oiling System: |
Six stage dry sump (8-qt. capacity); includes oil-spray piston cooling
|
|
Combustion Chamber Voliume:
|
58.8 cc |
| Engine Oil Capacity: | 8.0 Quarts |
| Oil Type: | DexosR synthetic 5W50 |
| Valvetrain: |
Dual overhead camshafts with mechanical finger follower valvetrain and dual-coil valve springs
|
| Valve Size |
1.654 inch / 42 mm. titanium (intake) & 1.378 inch / 35 mm. sodium filled (exhaust)
|
| Firing Order | 1-4-3-8-7-6-5-2 |
Performance
| 0 – 60 MPH: | 2.6 seconds (GM, preliminary) |
| 1/4 mile: | 10.6 seconds (GM, preliminary) |
Chassis Specs
| Suspension – Front: |
Short/long arm (SLA) double wishbone, forged aluminum upper and cast aluminum L-shape lower control arms; monotube shock absorbers (46mm); Magnetic Selective Ride Control 4.0 available. Specific calibration with available Z07 package. Front lift with memory is available.
|
| Suspension – Rear: |
Short/long arm (SLA) double wishbone, forged aluminum upper and cast aluminum L-shape lower control arms; direct-acting stabilizer bar; monotube shock absorbers (46mm); Magnetic Selective Ride Control 4.0. Specific calibration with available Z07 package
|
| Steering: |
Variable-ratio rack-and-pinion with electric power assist; includes Active Steer Stops with available Magnetic Ride Control 4.0
|
| Steering Ratio: | 15.7:1 |
| Turning Circle: | N/A |
Brake Specs
| Type: |
Front and rear eBoost-assisted discs with Brembo six-piston/two-piece front calipers and four-piston/monobloc rear calipers.
|
| Rotor Diameter: |
Front: 14.6 inches (321 mm) x 1.3 inches (34 mm.)
Front: 15.7 inches (398 mm) x 1.5 inches (38 mm.) – With available carbon ceramicRear: 15.0 inches (339 mm) x 1.3 inches (38 mm.) Rear: 15.4 inches (390 mm) x 1.3 inches (34 mm.) – With available carbon ceramic |
