2017 C7 Corvette RPO Codes, Options Codes & Order Guide
If you are looking to decode your 2017 Corvette RPO’s (option codes), then check out the table below. We have included an easy to use search feature too if you are looking for a specific code just type it into the search field to navigate to it quickly. We have also included the full 2017 Corvette Order Guide further down in the post.
2017 Corvette RPO Codes
| Code | Description |
|---|---|
| 20A | Blue fender hash marks |
| 36S | Yellow custom leather stitch |
| 37S | Blue custom leather stitch |
| 38S | Red custom leather stitch |
| 3F9 | Safety belt color, Red |
| 55A | Hyper Green fender hash marks |
| 59A | Yellow fender hash marks |
| 5KX | LPO, Stingray Exterior Appearance Package Coupe |
| 5V6 | LPO, Stingray Logo Package |
| 5VM | LPO, Exposed Carbon Fiber Ground Effects |
| 5W8 | LPO, Carbon Flash Ground Effects |
| 5WH | LPO, Front bumper molding |
| 5YN | LPO, Chrome interior trim badge with Stingray logo |
| 5YU | LPO, Torque directional chrome aluminum 19″ (48.3 cm) front and 20″ (50.8 cm) rear wheels |
| 5YV | LPO, Torque Silver aluminum 19″ (48.3 cm) front and 20″ (50.8 cm) rear wheels |
| 5YW | LPO, Motorsports polished aluminum 19″ (48.3 cm) front and 20″ (50.8 cm) rear wheels |
| 5YX | LPO, Motorsports Black aluminum 19″ (48.3 cm) front and 20″ (50.8 cm) rear wheels |
| 5YZ | LPO, Z51-style Satin Black with Red stripe aluminum 19″ (48.3 cm) front and 20″ (50.8 cm) rear wheels |
| 5Z2 | LPO, Z51-style Satin Black with Yellow stripe aluminum 19″ (48.3 cm) front and 20″ (50.8 cm) rear wheels |
| 5ZG | LPO, Carbon Fiber wheel center caps with crossed flags logo |
| 5ZU | LPO, Z51-style spoiler |
| 5ZV | LPO, Carbon Flash painted Z51-style spoiler |
| 5ZW | LPO, Z06-style Carbon Flash spoiler |
| 5ZZ | LPO, Z06-style body-color spoiler |
| 62A | Volcano Orange fender hash marks |
| 75A | Torch Red fender hash marks |
| 90A | Gray fender hash marks |
| 97A | Carbon Flash Metallic fender hash marks |
| AAB | Memory Package |
| AE4 | Seats, Competition Sport bucket |
| AG2 | Seat adjusters, driver and passenger 8-way |
| AJ7 | Air bags, frontal and side-impact, driver and passenger |
| AJK | Seat adjusters, power bolster and power lumbar |
| AP9 | Cargo net |
| AQ9 | Seats, GT bucket |
| B4Z | Performance Traction Management |
| B92 | Hood insert, exposed Carbon Fiber weave |
| BE8 | LPO, Collector Edition sill plates |
| BTV | Remote vehicle starter system |
| BV4 | Plaque, personalized |
| C2M | Carbon Fiber Dual Roof Package |
| C2Q | Body-Color Dual Roof Package |
| C2Z | Roof panel, visible carbon fiber with body-color surround |
| CC3 | Roof panel, 1-piece transparent, removable |
| CFA | Roof panel, carbon fiber, painted body-color |
| CFV | Visible Carbon Fiber Ground Effects Package |
| CFX | Plaque, personalized with Corvette Museum logo |
| CFY | Plaque, numbered |
| CFZ | Carbon-Flash Painted Ground Effects Package |
| CJ2 | Air conditioning, dual-zone automatic climate control |
| CM8 | Convertible top, power-folding |
| D30 | Color Combination Override |
| D42 | Luggage shade |
| DD0 | Mirrors, outside heated power-adjustable and driver-side auto-dimming, body-color |
| DD8 | Mirror, inside rearview auto-dimming |
| DL8 | Mirrors, outside heated power-adjustable, body-color |
| DNE | Grand Sport Satin Black Full Length Racing Decal Package |
| DTH | Carbon Flash Full Length Dual Racing Stripe Package |
| DTN | Cyber Gray Full Length Dual Racing Stripe Package |
| DTP | Blade Silver Full Length Dual Racing Stripe Package |
| DTQ | Inferno Orange Full Length Dual Racing Stripe Package |
| DTR | Crystal Red Full Length Dual Racing Stripe Package |
| DTW | Carbon Flash Hood Stinger Stripe |
| DUP | Red, White and Blue Full Length Racing Decal Package |
| DUR | Grand Sport Satin Black Full Length Racing Decal Package |
| DVQ | Jake Carbon Flash Metallic Two-Tone Hood Stinger Decal |
| DWA | Velocity Yellow Full Length Racing Decal Package |
| DXM | Shark Gray Hood Stinger Stripe |
| DXP | Grand Sport Red Full Length Racing Decal Package |
| DXT | Grand Sport Gray Full Length Racing Decal Package |
| DXU | Grand Sport Blue Full Length Racing Decal Package |
| DXX | Grand Sport White Full Length Racing Decal Package |
| DYV | Satin Black Hood Stinger Stripe |
| E57 | Tonneau inserts, Carbon Fiber |
| EFX | Vents, exterior, Shark Gray-painted |
| EFY | Vents, exterior, body-color painted |
| ERI | Battery Protection Package |
| EYK | Chrome Badge Package |
| EYT | Carbon Flash Badge Package |
| FAY | Trim, interior |
| FCC | Trim, interior, high-gloss carbon fiber, instrument panel |
| FE1 | Suspension, 4-wheel independent |
| FE2 | Magnetic Selective Ride Control |
| FE3 | Suspension, Z51 performance |
| FE4 | Magnetic Selective Ride Control |
| FE6 | Suspension, Performance Ride and Handling |
| FE7 | Suspension, Z07 |
| FE9 | Emissions, Federal requirements |
| G96 | Differential, electronic limited slip |
| GU2 | Rear axle, 2.73 ratio |
| GU6 | Rear axle, 3.42 ratio |
| GU6 | Rear axle, 3.42 ratio |
| GXB | Rear axle, 2.41 ratio |
| IO5 | Audio system, Chevrolet MyLink Radio with 8″ diagonal color touch-screen, AM/FM stereo with seek-and-scan and digital clock |
| IO6 | Audio system, Chevrolet MyLink Radio with Navigation and 8″ diagonal color touch-screen, AM/FM stereo with seek-and-scan and digital clock |
| IWE | Sueded Microfiber-Wrapped Upper Interior Trim Package |
| IWE | Sueded Microfiber-Wrapped Upper Interior Trim Package |
| J55 | Brakes, performance 4-wheel antilock, 4-wheel disc |
| J56 | Brakes, 4-wheel antilock, 4-wheel disc |
| J57 | Brakes, 4-wheel antilock, 4-wheel disc |
| J6A | Calipers, Black |
| J6D | Calipers, Dark Gray Metallic |
| J6E | Calipers, Yellow |
| J6F | Calipers, Red |
| J6K | Calipers, Dark Red |
| JL9 | Brakes, 4-wheel antilock, 4-wheel disc |
| KNR | Cooler, rear differential |
| KQV | Seats, heated and vented driver and passenger |
| LT1 | Engine, 6.2L (376 ci) V8 DI |
| LT1 | Engine, 6.2L (376 ci) V8 DI |
| M5U | Transmission, 8-speed paddle shift |
| MEL | Transmission, 7-speed manual |
| MEP | Transmission, 7-speed manual |
| N26 | Steering wheel, 3-spoke, sueded microfiber-wrapped, flat-bottom |
| N38 | Steering column, power tilt and telescopic |
| NB8 | Emissions override, California |
| NB9 | Emissions override, state-specific |
| NC7 | Emissions override, Federal |
| NE1 | Emissions |
| NK4 | Steering wheel, 3-spoke leather-wrapped |
| NPP | Exhaust, performance |
| PDV | LPO, Wing-Style Spoiler with Wicker |
| PIN | Customer selectable VIN |
| PQF | OnStar 6 months of OnStar Protection Service |
| PQG | OnStar 18 months of OnStar Protection Service |
| PQH | OnStar 30 months of OnStar Protection Service |
| PQI | OnStar 6 months of OnStar Security Service |
| PQL | OnStar 18 months of OnStar Security Service |
| PQM | OnStar 30 months of OnStar Security Service |
| PQP | OnStar Additional 6 months of OnStar Fleet Guidance Service |
| PQQ | OnStar Additional 18 months of OnStar Fleet Guidance Service |
| PQT | OnStar Additional 30 months of OnStar Fleet Guidance Service |
| Q7E | Wheels, chrome aluminum, 19″ x 8.5″ (48.3 cm x 21.6 cm) front and 20″ x 10″ (50.8 cm x 25.4 cm) rear |
| Q7S | Wheels, 5-split spoke, Silver-painted aluminum, 19″ x 8.5″ (48.3 cm x 21.6 cm) front and 20″ x 10″ (50.8 cm x 25.4 cm) rear |
| Q7T | Wheels, Black aluminum, 19″ x 8.5″ (48.3 cm x 21.6 cm) front and 20″ x 10″ (50.8 cm x 25.4 cm) rear |
| Q8K | Wheels, Grand Sport machined-face, aluminum, 19″ x 10″ (48.3 cm x 25.4 cm) front and 20″ x 12″ (50.8 cm x 30.48 cm) rearx 12″ (50.8 cm x 30.48 cm) rear |
| Q8W | Wheels, Grand Sport Pearl Nickel-painted aluminum, 19″ x 10″ (48.3 cm x 25.4 cm) front and 20″ x 12″ (50.8 cm x 30.48 cm) rear |
| Q8X | Wheels, Grand Sport Black aluminum, 19″ x 10″ (48.3 cm x 25.4 cm) front and 20″ x 12″ (50.8 cm x 30.48 cm) rear |
| Q8Z | Wheels, Grand Sport chrome aluminum, 19″ x 10″ (48.3 cm x 25.4 cm) front and 20″ x 12″ (50.8 cm x 30.48 cm) rear |
| QCC | Wheels, Black machined aluminum, 19″ x 8.5″ (48.3 cm x 21.6 cm) front and 20″ x 10″ (50.8 cm x 25.4 cm) rear |
| QG6 | Wheels, Silver-painted aluminum, 18″ x 8.5″ (45.7 cm x 21.6 cm), front and 19″ x 10.0 ” (48.3 cm x 25.4 cm), rear |
| QX1 | Wheels, Black aluminum, 18″ x 8.5″ (45.7 cm x 21.6 cm) front and 19″ x 10 ” (48.3 cm x 25.4 cm) rear |
| QX3 | Wheels, chrome aluminum, 18″ x 8.5″ (45.7 cm x 21.6 cm) front and 19″ x 10.0 ” (48.3 cm x 25.4 cm) rear |
| R86 | Wheels, Motorsports polished aluminum, 19″ x 8.5″ (48.3 cm x 21.6 cm) front and 20″ x 10″ (50.8 cm x 25.4 cm) rear |
| R87 | Wheels, Z51-style Satin Black with Red stripe aluminum 19″ (48.3 cm) front and 20″ (50.8 cm) rear |
| R8C | Corvette Museum Delivery |
| ROV | OnStar with 4G LTE for Fleet (12GB/12 months) |
| ROW | OnStar with 4G LTE for Fleet (24GB/24 months) |
| RPK | Wheels, Black machined aluminum, 18″ x 8.5″ (45.7 cm x 21.6 cm) front and 19″ x 10″ (48.3 cm x 25.4 cm) rear |
| RUR | Wheels, Grand Sport Satin Black aluminum with Red Stripe, 19″ x 10″ (48.3 cm x 25.4 cm) front and 20″ x 12″ (50.8 cm x 30.48 cm) rear |
| RWH | LPO, Indoor vehicle cover |
| RWJ | LPO, Outdoor vehicle cover |
| RXH | LPO, Jake logo center caps |
| RXJ | LPO, Wheel center caps with Stingray logo |
| RXX | LPO, Carbon Flash rear license plate holder |
| S2L | LPO, Custom Corvette luggage |
| SB3 | LPO, Body-color wing spoiler |
| SH2 | LPO, Custom floor console lid with Stingray logo |
| T4F | Headlamps, high intensity discharge |
| TTV | Mirrors, outside, carbon flash-painted |
| TTV | Spoiler, rear |
| TU7 | Seats, two-tone |
| U2K | SiriusXM Satellite Radio |
| UE1 | OnStar Guidance Plan for 6 months |
| UG1 | Universal Home Remote |
| UHS | Driver Information Center |
| UQA | Audio system feature, Bose premium 9-speaker system |
| UQS | Audio system feature, Bose advanced 10-speaker system |
| UQT | Performance data and video recorder |
| UTT | Theft-deterrent system, body security content |
| UV6 | Head-Up Display |
| UVJ | Curb View cameras, front |
| V8X | LPO, Custom sill plates with Stingray logo |
| VDN | LPO, Indoor vehicle cover |
| VK3 | License plate bracket, front |
| VLI | LPO, Cargo mat |
| VLN | LPO, Windscreen |
| VO4 | LPO, Underhood liner with crossed flags logo |
| VQK | LPO, Front and rear Black molded splash guards |
| VRS | LPO, Cargo shade |
| VRU | LPO, Outdoor vehicle cover, Gray |
| VTB | LPO, Rear fascia protector |
| VTD | LPO, Body-Color Carbon Fiber Ground Effects |
| VTE | LPO, Underhood liner with Stingray logo |
| VTF | LPO, Custom leather-wrapped floor console lid with Stingray logo |
| VV4 | OnStar 4G LTE |
| VWD | LPO, Chrome Z51 logo center caps |
| VYW | LPO, Floor mats, premium carpeted with Grand Sport logo |
| VYW | LPO, Floor mats, premium carpeted |
| WKP | LPO, Indoor vehicle cover |
| WKQ | LPO, Indoor vehicle cover |
| WKU | LPO, Indoor vehicle cover |
| XBK | Tires, P245/40ZR18 front and P285/35ZR19 rear, performance |
| XFJ | Tires, P245/35ZR19 front and P285/30ZR20 rear, performance |
| XFK | Tires, front P285/30ZR19 and rear P335/25ZR20 Michelin Pilot Super Sport summer-only |
| XFM | Tires, front P285/30ZR19 and rear P335/25ZR20 Michelin Pilot Super Sport Cup 2 summer-only |
| YF5 | Emissions, California state requirements |
| Z07 | Z07 Performance Package |
| Z15 | Grand Sport Heritage Package |
| Z16 | Grand Sport Performance Package |
| Z25 | Grand Sport Collector Edition |
| Z51 | Z51 Performance Package |
| Z52 | Dry sump oil system |
| ZLD | Twilight Blue Design Package |
| ZLE | Spice Red Design Package |
| ZLG | Black Suede Design Package |
| Code | Description |

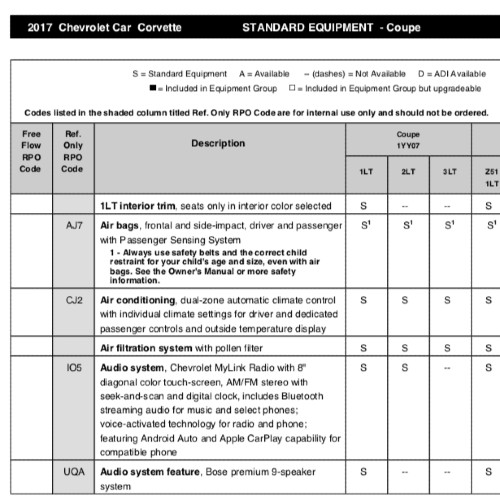

2017 Corvette Order Guide
Click on the link below to download the full 2017 Corvette Order Guide.
