2014 Corvette Specifications
Main Specs
| MODEL: | 2014 Chevrolet Corvette |
| BODY STYLE: | 2-door hatchback coupe with removable roof panel; rear-wheel drive |
| MANUFACTURING LOCATION: | Bowling Green, Kentucky |
| CONSTRUCTION: | Composite and carbon-fiber body panels, hydroformed aluminum frame with aluminum and magnesium structural and chassis components. |
Body Specs
| Model | Chevrolet Corvette Stingray |
|
Body styles / driveline:
|
two door hatchback coupe with removable roof panel or two door convertible; rear-wheel drive
|
| Construction: |
Composite and carbon-fiber body panels, hydroformed aluminum frame with aluminum and magnesium structural and chassis components
|
| Manufacturing Plant: | Bowling Green, KY |
| Wheelbase: | 106.7 inches (2,710 mm) |
| Length: | 176.9 inches / 4,493 mm |
| Width: | 73.9 inches / 1,877 mm |
| Height: | 48.6 inches / 1,235 mm (Coupe) 48.6 inches / 1,235 mm (Convertible) |
| Track: | 63 inches (1,600) – Front 61.7 inches (1,567) – Rear |
| Curb Weight: | 3,298 lbs (1,499 kg) – Coupe 3,362 lbs (1,529 kg) – Convertible |
| Weight Distribution: | 50% Front, 50% Rear |
| Seating Capacity: | Two |
| Headroom: | 38 inches (962 mm) |
| Leg Room: | 43 inches (1,092 mm) |
| Shoulder Room: | 55 inches (1,397) |
| Hip Room: | 54 inches (1,371) |
| Interior Volume: | 52 cu. ft. (1,475 L) |
| Cargo Volume: | Coupe – 15 cu. ft. (425 L) Convertible – 10 cu. ft. (283 L) |
| Fuel Capacity: | 18.5 gal (70 L) |
|
Manual Seven Speed Transmission:
|
1st Gear 2.66:1 2nd Gear 1.78:1 3rd Gear 1.30:1 4th Gear 1.00:1 5th Gear .74:1 6th Gear .50:1 7th Gear .42:1 Reverse Gear 2.90:1 Final Drive Ration 3.42 |
|
Manual Seven Speed Transmission with Active Rev Match with Z51:
|
1st Gear 2.97:1 2nd Gear 2.07:1 3rd Gear 1.43:1 4th Gear 1.00:1 5th Gear .71:1 6th Gear .57:1 7th Gear .48:1 Reverse Gear 2.90:1 Final Drive Ration 3.42 |
|
Six Speed Paddle Shift Automatic:
|
1st Gear 4.03:1 2nd Gear 2.36:1 3rd Gear 1.53:1 4th Gear 1.15:1 5th Gear 0.85:1 6th Gear 0.67:1 Reverse Gear 3.06:1 Final Drive Ration 2.56 (2.73 with Z51) |
|
Standard Fuel Tank Capacity:
|
18.5 gal (70 L) |
| Wheels: | Front: 18-inch x 8.5-inch Rear: 19-inch x 10-inch Front: 19-inch x 8.5-inch (with Z51) Rear: 20-inch x 10-inch (with Z51) |
| Tires: | Michelin Pilot Super Sport Run Flat Front: P245/40R18 Rear: P285/35R19 Front: P245/35R19 (with Z51) Rear: P285/30R20 (with Z51) |
| EPA Fuel Economy: |
Manual Transmission (Coupe, Convertible)
17 MPG (City) / 28 MPG (Highway) / 21 MPG (Combined)Automatic Transmission (Coupe, Convertible) 16 MPG (City) / 27 MPG (Highway) / 20 MPG (Combined) |
Engine Specs
| Designation: | LT1 (Coupe, Convertible) |
| Type: | 90° V8, Pushrod, OHV (overhead Valve) |
|
Displacement – Coupe, Convertible:
|
376 cu. in. (6,162 cc) |
|
Bore / Stroke – Coupe, Convertible:
|
4.06 inches x 3.62 inches (103.25 mm 92 mm) |
| Horsepower: |
455 hp @ 6,000 RPM
460 hp @ 6,000 RPM (with performance exhaust) |
| Torque: |
460 lbs. – ft. @ 4,600 (SAE-certified)
465 lbs. – ft. @ 4600 (SAE-certified, with performance exhaust) |
|
Fuel Induction System:
|
Direct Injection |
|
Fuel Requirement – Coupe, Convertible:
|
Premium recommended, not required |
| Redline: | 6,600 RPM |
| Compression Ratio | 11.5:1 |
|
Cylinder Head Material:
|
Cast Aluminum |
| Block Material: | Cast Aluminum |
| Exhaust Manifolds: | |
| Engine Oil Capacity: | 7 Quarts, with filter 9.75 Quarts, with Z51 |
|
Cooling System Capacity:
|
11.3 qt (10.7 L) |
Performance
| 0 – 60 MPH: | 3.8 seconds |
| 1/4 mile: | 12 seconds @ 119 MPH |
Chassis Specs
| Suspension – Front: |
Short/long arm (SLA) double wishbone, cast aluminum upper and lower control arms, transverse-mounted composite spring, monotube shock absorber
|
| Suspension – Rear: |
Short/long arm (SLA) double wishbone, cast aluminum upper and lower control arms, transverse-mounted composite spring, monotube shock absorber
|
| Steering: |
Variable-ratio rack-and-pinion with electric power assist
|
| Steering Ratio: | 12.0:1 to 16.4:1 |
|
Steering Turns, Lock to Lock:
|
2.53 |
|
Turning Circle, Curb to Curb:
|
37.7 ft. (11.5 M) |
| Active Handling |
Magnetic Selective Ride Control (available with Z51)
|
| Traction Control: | StabiliTrak electronic stability control |
Brake Specs
| Type: |
Front and rear power-assisted discs with four-piston fixed front and rear calipers (slotted rotors with Z51)
|
| Rotor Diameter: |
Front: 12.6 inches (320 mm) (13.6 inches (345 mm) with Z51)
Rear: 13.3 / 338 |
| Rotor Thickness: | Front: 1.18 inches (30 mm) (including Z51) Rear: 0.90 inches (23 mm) |
Exterior Dimensions

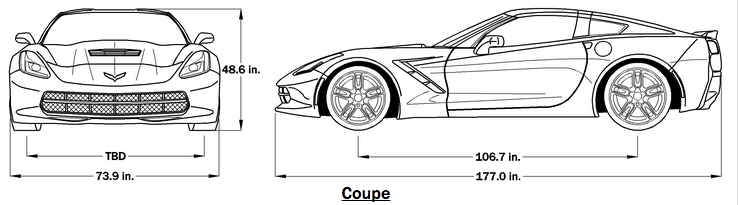

2014 Corvette Exterior Dimensions
Exterior Dimensions
| Exterior Dimensions | |
| Model | Coupe |
| Wheelbase | 106.7 Inches |
| Overall Length | 177.0 Inches |
| Total Body Width | 73.9 Inches |
| Overall Height | 48.6 Inches |
| Front Track Width | 62.8 Inches |
| Rear Track Width | 61.6 Inches |
Interior Dimensions
| Interior Dimensions | |
| Model | Coupe |
| Headroom | 37.9 Inches |
| Shoulder Room | 55.2 Inches |
| Hip Room | 53.7 Inches |
| Leg Room | 43.0 Inches |
