2013 Corvette Specifications
Main Specs
| MODEL: | 2013 Chevrolet Corvette |
| BODY STYLE: | Two-door Coupe, Convertible, Hard Top front engine, rear wheel drive |
| MANUFACTURING LOCATION: | Bowling Green, Kentucky |
| VEHICLE NUMBERS (VIN): | TBD |
| CONSTRUCTION: | Composite body, hydroformed steel frame with aluminum & magnesium structural & chassis components. |
2013 Corvette Powertrain Specifications
| Engine | |
| Type: | LS7 |
| Valvetrain: | OHV |
| Valves per cylinder: | 2 |
| Number of Cylinders | 8 |
| Displacement (cc/cid): | 7,008 / 427 |
| Fuel induction system: | Sequential Fuel Injection |
| Horsepower (SAE net @ rpm): | 505 @ 6,300 |
| Torque (lbs.-ft. @ rpm) (manual): | 470 @ 4,800 |
| Bore x stroke (mm.): | 104.8 x 101.6 |
| Compression ratio: | 11.0:1 |
| Engine Materials | |
| Block: | Cast Aluminum |
| Cylinder Heads: | Cast Aluminum |
| Fuel Economy | |
| Fuel Required: | 18/28 (City/Hwy) |
| EPA – Manual Transmission | 15 mpg (City), 24 mpg (Hwy) |
| Max cruising range | 432 miles |
Transmission (Manual)
| Standard Transmission Spec | |
| Type: | Six Speed Manual |
| Gear Ratios | |
| 1st Gear: | 2.66:1 |
| 2nd Gear: | 1.78:1 |
| 3rd Gear: | 1.30:1 |
| 4th Gear: | 1.00:1 |
| 5th Gear: | 0.74:1 |
| 6th Gear: | 0.50:1 |
| Reverse: | 2.90:1 |
| Final Drive Ratio: | 3.42:1 |
2013 Corvette Wheels, Suspension & Brakes
Suspension
| Front Suspension | |
| Front Suspension | Type: Short/Long arm (SLA) double wishbone
Features: Cast aluminum upper and lower control arms, Transverse-mounted composite leaf spring, Monotube shock absorber, Magnetic Selective Ride Control |
| Rear Suspension | |
| Rear Suspension | Type: Short/Long arm (SLA) double wishbone
Features: Cast aluminum upper and lower control arms, Transverse-mounted composite leaf spring, Monotube shock absorber, Magnetic Selective Ride Control |
Brakes
| Type | Front and Rear Power-Assisted, Four-Wheel Vented Disc, Six Piston front and four piston rear calipers, cross-drilled rotors |
| Anti-lock system (Standard): | ABS |
| Rotor diameter x thickness, front (in.): | 14.0 x 1.3, 13.4 x 1.0 |
| Rotor diameter x thickness, rear (in.): | 309 / 269 |
Wheels & Tires
| Wheels & Tires | Coupe/Convertible |
| Front Tires | 285/30ZR19 |
| Rear Tires | 335/25ZR20 |

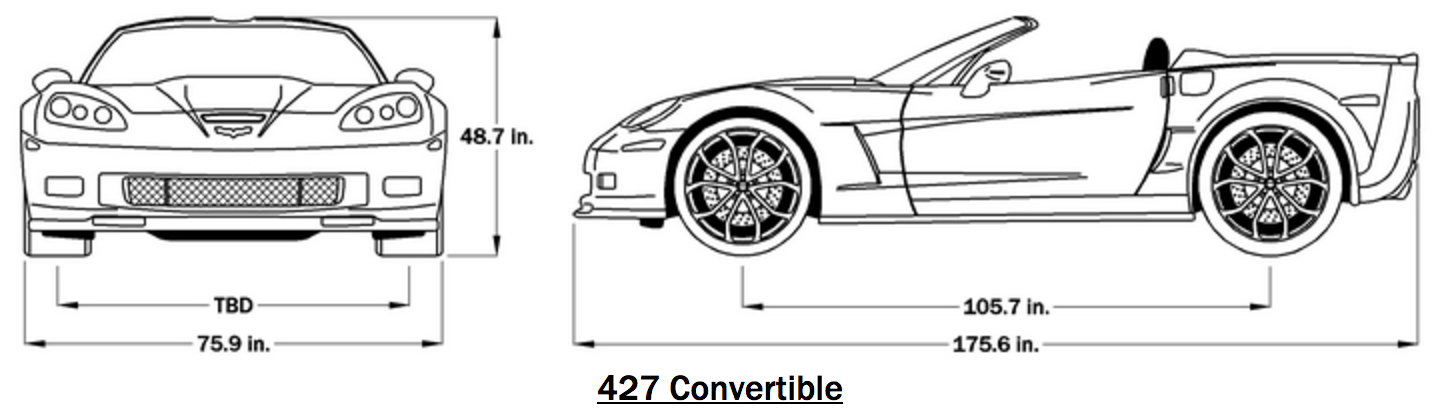

2013 Corvette Exterior Dimensions
Exterior Dimensions
| Exterior Dimensions | ||
| Model | Coupe | Convertible |
| Wheelbase | 105.7 Inches | 105.7 Inches |
| Overall Length | 175.6 Inches | 175.6 Inches |
| Total Body Width | 72.6 Inches | 72.6 Inches |
| Overall Height | 49.0 Inches | 49.1 Inches |
| Front Track Width | 62.1 Inches | 62.1 Inches |
| Rear Track Width | 60.7 Inches | 60.7 Inches |
Interior Dimensions
| Interior Dimensions | ||
| Model | Coupe | Convertible |
| Headroom | 37.9 Inches | 37.9 Inches |
| Shoulder Room | 55.2 Inches | 55.2 Inches |
| Hip Room | 53.7 Inches | 53.7 Inches |
| Leg Room | 43.0 Inches | 43.0 Inches |
Capacities
| Capacities | ||
| Model | Coupe | Convertible |
| Passenger Capacity | 2 – Driver & Passenger | 2 – Driver & Passenger |
| Curb Weight | 3,179 lbs. | 3,199 lbs. |
| Cargo Volume (cu.ft): | 22.4 Cubic Feet | 10.4 Cubic Feet |
| Fuel Capacity (GALLONS) | 18 gallons | 18 gallons |
| Engine Oil Capacity (QTS) | 5.5 (with filter) | 5.5 (with filter) |
2013 Corvette Performance Results
| 0-60 MPH: | 3.8 Seconds |
| QUARTER MILE: | 11.80 Seconds |
