2009 C6 Corvette RPO Codes, Options Codes & Order Guide
If you are looking to decode your 2009 Corvette RPO’s (option codes), then check out the table below. We have included an easy to use search feature too if you are looking for a specific code just type it into the search field to navigate to it quickly. We have also included the full 2009 Corvette Order Guide further down in the post.
2009 Corvette RPO Codes
Code | Description |
---|---|
AAB | Memory - Driver Convenience Package |
ACA | Net - Cargo, Intrusion |
AG2 | Adjuster Pass ST - Power, Multi-Directional |
AJK | Control - Seat, Power Bolster, Power Lumbar |
AJ7 | Restraint System - Seat, Inflatable, Driver & Pass, FRT & Side |
AN4 | Restraint Provisions - Child |
AK5 | Restraint System - Seat, Inflatable, Driver & Pass |
AL0 | Sensor Indicator - Inflatable Restraint, FRT Pass/Child Presence Detector |
AQ9 | Seat - FRT BKT, Luxury |
AR9 | Seat - FRT BKT, Deluxe |
AU5 | Lock Control, Entry - Remote Entry, Low Power (Do Not Use After 2009 M.Y.) |
AU8 | Lock Control, Entry - Remote Entry, Specific Frequency (Do Not Use After 2009 M.Y.) |
AX4 | Restraint Conversion - Seat, Man, European |
BAG | Parts Pkg - Export |
BGR | Plant Code - Bowling Green, KY, USA |
BS1 | Insulation - Acoustical Pkg |
BV7 | Bumper Provisions - FRT & RR, Canadian Requirements |
B4H | Modification - Noise Control, Export |
B4P | Modification - Noise Control, Transmission Control Module |
CC3 | Roof - Hatch, Removable, Transparent |
CE4 | Washer - Headlamp, High Pressure |
CFB | Roof - Non-Removable |
CF7 | Roof - Hatch, Removable, Non-Transparent |
CJ2 | HVAC System - Air Conditioner FRT, Auto Temp Cont, AUX Temp Cont |
CM7 | Roof - Convertible, Folding, Power |
CV6 | Country - Chile |
CX1 | Country - Argentina |
C05 | Roof - Convertible Folding |
C2L | Roof - Package, Dual Removable |
DD0 | Mirror O/S - LH & RH, Remote Control, Electric, Heated, LT Sensitive |
DD8 | Mirror I/S R/V - LT Sensitive |
DL8 | Mirror O/S - LH & RH, Remote Control, Electric, Heated |
D42 | Shade - RR Compt |
EXP | Export |
FE1 | Suspension System - Soft Ride |
FE2 | Suspension System - Ride, Handling |
FE3 | Suspension System - Sport |
FE4 | Suspension System - Special Ride & Handling |
FE5 | Suspension System - Ride, Handling, Performance |
FE9 | Certification - Emission, Federal |
F55 | Chassis - Continuously Variable Real Time Damping Magnetorheological |
F92 | Chassis - Continuously Variable Real Time Damping Magnetorheological, Specific Tuning |
GM8 | Axle Rear - 2.56 Ratio |
GU2 | Axle Rear - 2.73 Ratio |
GU6 | Axle Rear - 3.42 Ratio |
JAF | Brake Provisions - Europe |
JJA | PT Dress Subassembly - Installed (Modular Optimization Method Only) |
JJB | PT Dress Subassembly - Not Installed (Modular Optimization Method Only) |
JL5 | Control - Manual Trans, First To Fourth Gear Skip Shift |
JL9 | Brake System - PWR, FRT & RR Disc, Antilock, FRT & RR WHL |
J55 | Brake System - Heavy Duty |
J56 | Brake System - PWR, FRT & RR Disc, Antilock, FRT & RR WHL, Heavy Duty |
J57 | Brake System - PWR, FRT & RR Disc, Antilock, FRT & RR WHL, Heavy Duty, Ceramic Rotors |
KNR | Cooling System - Axle |
KNP | Cooling System - Trans, HD |
KPS | Cooler - Oil, Engine |
KA1 | Heater - Seat, FRT |
KJ5 | Protector - Shipping, Shock Absorber |
K63 | Generator - 110 AMP |
LS3 | Engine - Gas, 8 Cyl, 6.2L, SFI, Alum, HO, GM |
LS7 | Engine - Gas, 8 Cyl, 7.0L, SFI, Alum, GM |
LS9 | Engine - Gas, 8 Cyl, 6.2L, SFI, Alum, HO, Inter CLR SC, GM |
MAE | Marketing Area - Europe |
MH3 | Transmission - Man 6 Spd, Tremec, 85mm, 2.29 1st, 0.818 5th, 0.675 6th |
MYC | Transmission - Auto 6 Spd, HMD, 6L80 |
MM6 | Transmission - Man 6 Spd, Tremec, 85mm, 2.66 1st, 0.50 6th, O/D |
MN6 | Merchandised Trans - Man 6 Spd Provisions |
MX0 | Merchandised Trans - Auto Provisions, O/D |
MZ6 | Transmission - Man 6 Spd, Tremec, 85mm, 2.97 1st, 0.57 6th, O/D |
NA3 | Emission System - Japan |
NE1 | Certification - Emission, Geographically Restricted Registration for Vehicles up to 14,000 lbs GVW (use 2003 mdl yr) |
NF9 | Emission System - General, OBD MIL Suppression |
NK4 | Steering Wheel - Sport Leather |
NPP | Exhaust System - Performance |
NT4 | Emission System - EEC 05 |
NT7 | Emission System - Federal, Tier 2 |
NU1 | Emission System - California, LEV2 |
NU5 | Emission System - California, Bin 4 |
QL9 | Wheel - 18 X 9.5 FRT & 19 X 12 RR, Polished |
QG6 | Wheel - 18 X 8.5 FRT & 19 X 10 RR, Aluminum, Styled |
QG7 | Wheel - 18 X 8.5 FRT & 19 X 10 RR, Polished |
QX1 | Wheel - 18 X 8.5 FRT & 19 X 10 RR, Aluminum, Painted |
Q10 | Wheel - 18 X 9.5 FRT & 19 X 12 RR, Aluminum, Painted |
Q44 | Wheel - 18 X 9.5 FRT & 19 X 12 RR, Aluminum, Painted, Var 1 |
Q6A | Wheel - 19 X 10 FRT & 20 X 12 RR, Aluminum, Cast, Painted |
Q6B | Wheel - 19 X 10 FRT & 20 X 12 RR, Aluminum, Cast, Chrome |
Q76 | Wheel - 18 X 9.5 FRT & 19 X 12 RR, Chrome |
Q8A | Wheel - 18 X 9.5 FRT & 19 X 12 RR, Chrome, Var 1 |
Q9V | Wheel - 18 X 8.5 FRT & 19 X 10 RR, Aluminum, Forged, Chrome |
R8C | Control - Sales Item No. 53 |
SSC | Performance Package - Super Sport |
SSG | Graphic - Switch Function Symbol |
TUM | Alarm - Seat Belt Warning, Additional |
T62 | Lamp System - Daytime Running - Delete |
T79 | Lamp - Fog, RR |
T84 | Headlamps - RH Rule of The Road, E Mark (Do Not Use After 2009 Global/New Major Programs) |
T85 | Headlamps - LH Rule of The Road, E Mark (Do Not Use After 2009 Global/New Major Programs) |
T90 | Lamp - Signaling & Marker, Export |
T93 | Lamp - Tail & Stop, Special |
UA2 | Theft Deterrent Sys - Export Specific (Do Not Use After 2009 Global/New Major Programs) |
UD4 | Alarm - Vehicle Speed, 120 k/h |
UE1 | Communication System - Vehicle, G.P.S. 1 |
UH3 | Tire Press Indicator - Low Tire Press, VAR 2 |
UG1 | Opener - Garage Door, Universal |
UJ6 | Tire Press Indicator - Low Tire Press |
UJ9 | Tire Press Indicator - Low Tire Press, VAR 1 |
UK1 | Frequencies - Japanese |
UK3 | Control - Steering Wheel, Accessory |
UL2 | Frequencies - European |
UPF | Wireless Interface - Short Range, Voice Rec |
US3 | Antenna - Diversity |
US8 | Radio - AM/FM Stereo, SEEK/SCAN, CD, Auto Tone, Clock, ETR, MP3, RDS |
US9 | Radio - AM/FM Stereo, SEEK/SCAN, RDS, Multiple Compact Disc, Auto Tone Control, Clock, ETR, MP3 |
UV6 | Display - Head Up |
U2K | Digital Audio System - S - Band |
U3U | Radio - AM/FM Stereo, SEEK/SCAN, DVD, CD, Clock, ETR, Navigation, Voice Rec, MP3 |
U3Z | Radio - AM/FM Stereo, SEEK/SCAN, DVD, CD, Clock, ETR, Navigation, Voice Rec, MP3, VICS |
U19 | Speedometer - Inst, Kilo & Miles, Kilo Odometer |
U52 | Cluster - Inst, Electronic |
U65 | Speaker System - 7, Premium |
U66 | Speaker System - 7, Custom |
VBX | Language Label - Arabic |
VDD | Vehicle Information - DVD, Customer Orientation |
VA5 | Language Label - English |
VB1 | Label - Shipping, Japan |
VC4 | Label - Price/Fuel Econ, Puerto Rico & Virgin Islands |
VC5 | Label - Shipping, Except US, US Possessions, or Japan |
VH5 | Plate - Vehicle Identification |
VH9 | Envelope - Owner Info Man |
VKG | Modification - Requirement, Lead-Free Compliant |
VK3 | License Plate Front - FRT Mounting PKG |
VL4 | License Plate Front - FRT Mounting PKG, EEC |
VL6 | License Plate Front - FRT Mounting PKG, Japanese |
VPK | Sales Package - Corvette, Accessory Package A |
VPL | Sales Package - Corvette, Accessory Package B |
VT7 | Owners Manual - English Language |
VZ3 | Label - Mercury Disposal Notification |
V73 | Vehicle Statement - USA/Canada |
V76 | Hook - Tow |
V78 | Vehicle Statement - Delete |
V87 | Vehicle Statement - Gulf States Organization |
W11 | Navigation Disc Data - Nav Data 1 |
W12 | Navigation Disc Data - Nav Data 2 |
XBH | Tire Front - P245/40ZR18 BW HW4 (EMT) |
XFA | Tire Front - P275/35ZR18 BW TL HW4 EMT |
XFG | Tire Front - P285/30ZR19 BW T: JW4 EMT |
XND | Tire Front - P245/40ZR18 BW HW4 (EMT) High-Performance |
YFJ | Tire Rear - P325/30ZR19 BW TL HW4 EMT |
YF5 | Certification - Emission, California |
YPI | Tire Rear - P285/35ZR19 BW HW4 (EMT) |
YPS | Tire Rear - P335/25ZR20 BTW TL HW4 EMT |
YTK | Tire Rear - P285/35ZR19 BW HW4 (EMT) High-Performance |
ZRI | Performance Package - Special Coupe |
ZV6 | Modification - RR Shock Damping, European Requirement |
Z5X | Mirror Provision - Arabic Language |
Z49 | Export - Canadian Modif Mandatory Base Equip |
Z4Z | Merchandised Pkg - Indy Pace Car |
Z51 | Performance Package - Handling |
1SA | Package - Option 01 |
1SB | Package - Option 02 |
1SE | Package - Option 05 |
1LT | Package - LT Option 1 |
1LZ | Package - LZ Option 1 |
2LT | Package - LT Option 2 |
2LZ | Package - LZ Option 2 |
3LT | Package - LT Option 3 |
3LZ | Package - LZ Option 3 |
35T | Top Color - Gray Beige (05) |
37T | Top Color - Titan Gray (05) |
4LT | Package - LT Option 4 |
4LZ | Package - LZ Option 4 |
41T | Top Color - Black (96) |
Code | Description |

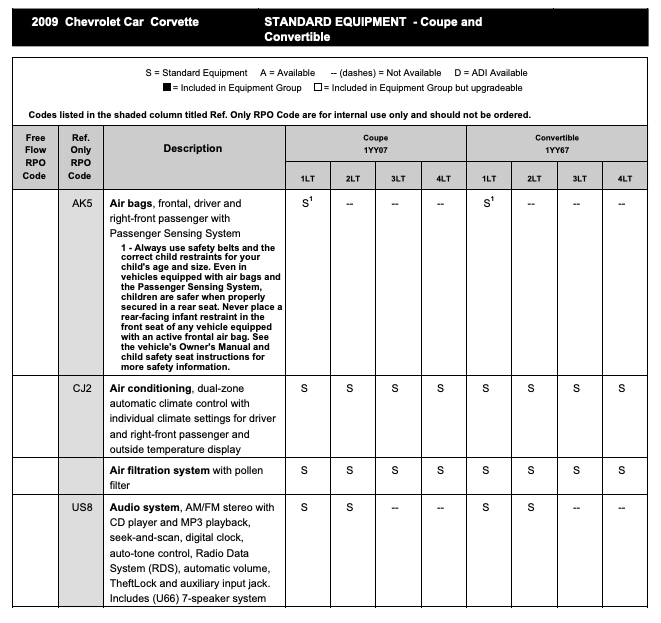

2009 Corvette Order Guide
Click on the link below to download the full 2009 Corvette Order Guide.
