2002 Corvette Factory Options
| CODE | DESCRIPTION | QUANTITY | PRICE |
| 1YY07 | Base Corvette Sport Coupe | 14,760 | $41,450.00 |
| 1YY37 | Base Corvette Z06 Hardtop | 8,297 | $50,150.00 |
| 1YY67 | Base Corvette Convertible | 12,710 | $47,975.00 |
| 1SB | Preferred Equipment Group 1 – Coupe | 1,359 | $1,700.00 |
| 1SB | Preferred Equipment Group 1 – Convertible | 1,379 | $1,800.00 |
| 1SC | Preferred Equipment Group 2 – Coupe | 11,136 | $2,700.00 |
| 1SC | Preferred Equipment Group 2 – Convertible | 10,964 | $2,600.00 |
| AAB | Memory Package (Z06 Hardtop) | 7,794 | $150.00 |
| B84 | Body Side Moldings | 21,422 | $75.00 |
| CC3 | Removable Roof Panel, Blue Tint (Coupe | 5,079 | $1,200.00 |
| C2L | Dual Removable Roof Panels (Coupe) | 4,208 | $750.00 |
| DDO | Electrochromatic Mirrors (Z06 Hardtop) | 7,394 | $120.00 |
| F45 | Selective Real Time Damping (Coupe & Convertible) | 4,773 | $1,695.00 |
| G92 | Performance Axle Ratio (3.15 ratio) (automatic) | 9,646 | $300.00 |
| MN6 | 6-Speed Manual Transmission (Coupe & Convertible) | 8,553 | $815.00 |
| N73 | Magnesium Wheels (Coupe & Convertible) | 114 | $1,500.00 |
| QF5 | Polished Aluminum Wheels (Coupe & Convertible) | 22,597 | $1,200.00 |
| R8C | Corvette Museum Delivery | 371 | $490.00 |
| ULO | Delco Stereo Cassette (Replaces Standard Radio) | 4,210 | -$100.00 |
| U1S | Remote Compact 12-Disc Changer (Coupe & Convertible) | 13,725 | $600.00 |
| V49 | Front License Plate Frame | 19,948 | $15.00 |
| Z51 | Performance Handling Package (Coupe & Convertible) | 6,106 | $350.00 |
| 79U | Millennium Yellow Paint with tint coat | 4,040 | $600.00 |
| 86U | Magnetic Red Metallic Paint (Coupe & Convertible) | 3,298 | $600.00 |
Base Corvette Sport Coupe (1YY07)
- The base price of the 2002 Chevrolet Corvette Coupe without any optional equipment.
- A 346 cubic inch, 350 horsepower, 5.7 liter engine (LS1), 4-speed automatic transmission, removable body-color roof panel, a Delco stereo system with CD player and digital clock, Bose speaker package, and leather seats were included in the base price.
Base Corvette Z06 Hardtop (1YY37)
- The base price of the 2002 Chevrolet Corvette Hardtop without optional equipment.
- A 346 cubic inch, 405 horsepower, 5.7 liter engine (LS6), 6-speed manual transmission, Head-Up Display (HUD), a Delco stereo system with CD player and digital clock, Bose speaker package, and leather seats were included in the base price.
Base Corvette Convertible (1YY67)
- The base price of the 2002 Chevrolet Corvette Convertible without optional equipment.
- A 346 cubic inch, 350 horsepower, 5.7 liter engine (LS1), 4-speed automatic transmission, a retractable soft top, a Delco stereo system with CD player and digital clock, Bose speaker package, and leather seats were included in the base price.
Preferred Equipment Group 1 – Coupe (1SB) – This Group Included:

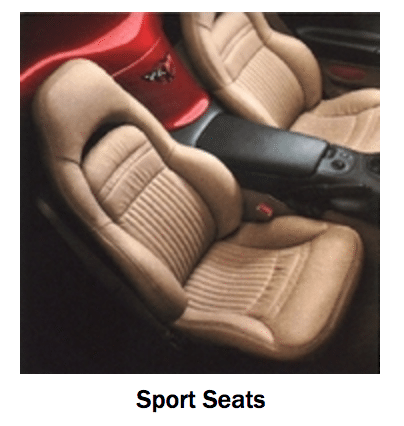

- Sport Bucket Seats
- 6-way Power Passenger Seat
- Electronic Dual-Zone Air Condition
- Fog Lamps
- Memory Package
- Luggage Parcel Shade
Preferred Equipment Group 1 – Convertible (1SB) – This Group Included:
- Sport Bucket Seats
- 6-way Power Passenger Seat
- Electronic Dual-Zone Air Condition
- Fog Lamps
- Memory Package
- Twilight Sentinel
- Electrochromatic Mirrors
Preferred Equipment Group 2 – Coupe (1SC) – This Group Included:
- 1SB equipment
- Electrochromatic Mirrors
- Head-Up Display (HUD)
- Twilight Sentinel
- Power-Telescopic Steering Column
Preferred Equipment Group 2 – Convertible (1SC) – This Group Included:
- 1SB equipment
- Head-Up Display (HUD)
- Power-Telescopic Steering Wheel
Memory Package (AAB)
- Periphery devices memory package.
- This option “remembered” outside-rear-view-mirror, radio, heater-vent air conditioning control, and power driver seat settings.
Body Side Moldings (B84)
- Plastic adhesive moldings that ran from the bodyside coves to the end of the door.
- These moldings had two pieces per side (one mounting ahead of the door to the front fender, the other mounting directly to the driver and passenger doors respectively), and their thickness tapered from front to rear.
Removable Roof Panel, Blue Tint (CC3)
- Single piece, transparent, removable glass roof top with blue tint.
- CC3 was only available for the Coupe.
Dual Removable Roof Panels (C2L)
- Single piece removable roof top panels – one painted, one tinted glass.
- The color on the painted panel exactly matched the body color of the car. The glass panel was tinted blue but remained otherwise transparent, providing the driver with an open feel in the cockpit, even when the panel was in place.
CC3 was only available for the Coupe.
ELECTROCHROMATIC MIRRORS (DD0)
- Outside mirrors LH and RH with electric remote control, heated, and light sensitivity.
- DD0 was only available for the Z06.
Selective Real Time Damping, electronic (F45)
- Electronic ride control system which adjusted ride to existing conditions.
- Included a driver-adjustable ride control system.
- This option was not available on Corvettes that were ordered with the Performance Handling Package (RPO Z51).
- F45 was not available for the Z06 Hardtop.
Performance Axle (3.15 Ratio (Automatic)) (G92)
- Optional performance axle ratio of 3.15:1 with automatic transmission.
- The standard automatic transmission featured an axle ratio of 2.75:1. By comparison, the manual transmission model featured a 3.42:1 axle ratio.
6-Speed Manual Transmission (MN6)
- An optional, 6-speed manual transmission.
- The rear transaxle combined a Borg-Warner six-speed manual transmission (utilizing a Computer-Aided Gear Selection (CAGS)) with a limited-slip axle built by Getrag.
Magnesium Wheels (N73)
- Optional magnesium wheel package replacing the standard polished aluminum wheels.
Polished Aluminum Wheels (QF5)
- High-Polish 5-spoke Forged Aluminum Wheels
Corvette Museum Delivery (R8C)
Delco Stereo Cassette (UL0)
- Remote Compact 12-Disc Changer (U1S) – Remote 12-disc CD player/disc changer (installed in rear storage compartment).
- Front License Plate Frame (V49) – A “U” shaped plastic frame on the front bumper that a second license plate could slip into.
- This was an appearance item only, and was not required for mounting a front license plate to the C5 Corvette.
Performance Handling Package (Z51)
- Upgraded suspension system for better performance and handling.
- This option included stiffer springs and stabilizer bars.
- It required the Performance Axle Ratio (RPO G92) with automatic transmission.
- It was not made available on vehicles equipped with Selective Real Time Dampening (RPO F45).
Millenium Yellow Paint (79U)
- Premium Tint Coat Color – Additional Charge
Magnetic Red Metallic Paint (86U)
- This paint option required additional costs.
Notes
- LS6 engine (Z06 model) receives 20-horsepower increase, to 405 hp, and 15 foot-pounds more torque for a total of 400 lb-ft of torque
- The Z06-specific FE4 High-Performance suspension system features a larger front stabilizer bar, a stiffer rear leaf spring and specific camber settings – all calibrated for maximum control during high-speed operation.
- The Z06 has new rear shock valving for a more controlled ride.
- The Z06 and models equipped with the available Z51 package now have aluminum front stabilizer bar links for lighter weight.
- New high performance front brake pads on the Z06 provide improved lining durability and fade resistance in high performance situations.
- Aluminum automatic transmission cooler case
- Cast aluminum wheels replace forged aluminum on Z06
- Coupes and Convertibles receive an AM/FM/In-dash CD system as the new standard entertainment system.
- AM/FM/Cassette is only available with 12-disc CD changer on the Coupe and Convertible.
- Head-Up Display (HUD) is now standard on the Z06.
- New Electron Blue exterior color (Navy Blue Metallic and Dark Bowling Green Metallic no longer available)
New Color Options for the 2002 Corvette
- Exterior Color Additions
- Electron Blue
New Pro Options for the 2002 Corvette
- RPO options remained the same for 2002
2002 Corvette Exterior & Interior Colors
Color Options & Quantities
| CODE | EXTERIOR COLORS | Coupe | Conv | Z06 | Total | INTERIOR COLORS |
| 11 | Light Pewter Metallic | 1,578 | 1,072 | N/A | 2,650 | Black, Light Grey, Red |
| 12 | Quicksilver | 1,808 | 1,343 | 1,467 | 4,618 | Black, Light Grey, Red |
| 21 | Electron Blue | 2,222 | 1,371 | 1,814 | 5,407 | Black, Light Grey, Light Oak |
| 40 | Speedway White | 879 | 884 | N/A | 1,763 | Black, Light Grey, Light Oak,Red |
| 41 | Black | 2,522 | 2,402 | 2,205 | 7,129 | Black, Light Grey, Light Oak,Red |
| 70 | Torch Red | 2,830 | 2,286 | 1,746 | 6,862 | Black, Light Grey, Light Oak, Red |
| 76 | Millenium Yellow | 1,312 | 1,663 | 1,065 | 4,040 | Black |
| 89 | Magnetic Red Metallic | 1,609 | 1,689 | N/A | 3,298 | Black, Light Grey, Light Oak |
Convertible Top Colors & Quantities
| CODE | COLOR | TOTAL |
| 16T | White | 501 |
| 41T | Black | 9,276 |
| 67T | Light Oak | 2,933 |
Exterior Colors
Interior Colors

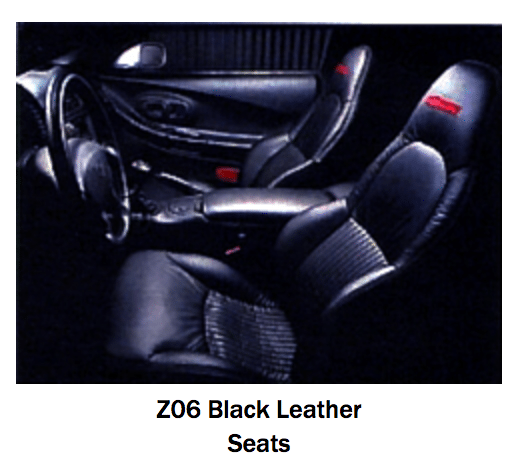

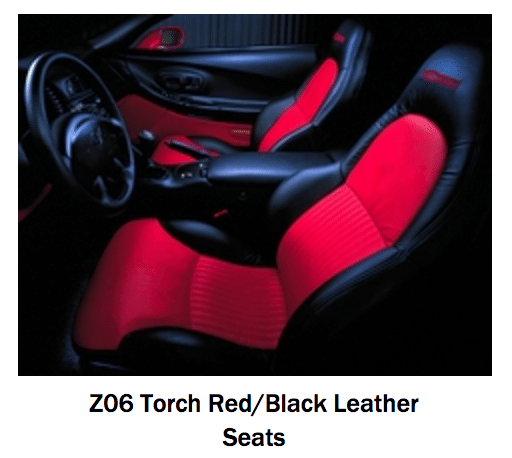

Seats

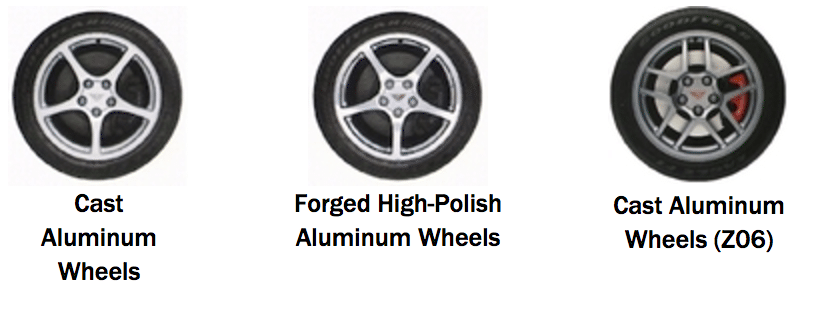

Wheels
